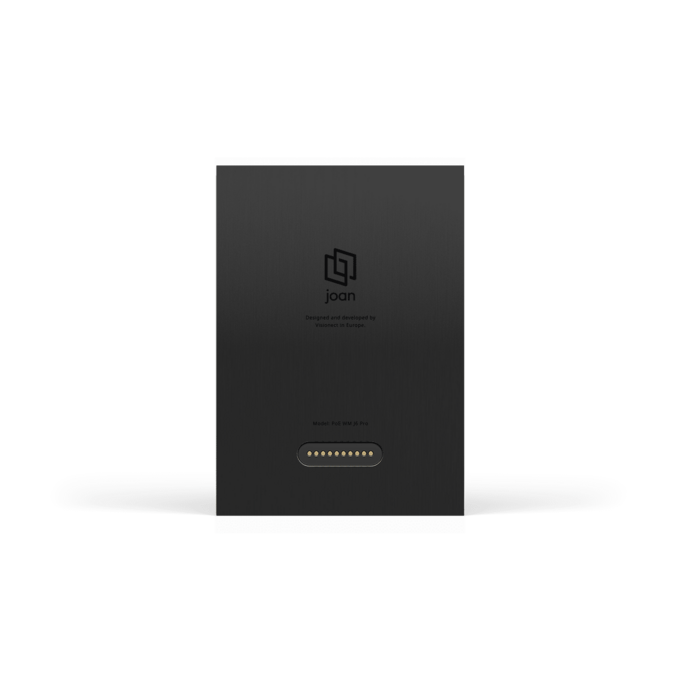

PoE Wall Mount for Joan 6 Pro

This fully-wired optional Power over Ethernet dock, designed exclusively for Joan 6 Pro, provides constant power and ethernet communication instead of WiFi. It additionally displays room occupancy status – green for free, red for booked, and orange for the upcoming meeting.

In-stock. Usually ships within 5 working days.

Quantity

€199.00 Excluding tax

Using the PoE wall mount with Joan 6 Pro provides many benefits simultaneously.

Ideal for companies with extra stringent security protocols.

Safe and stable

The PoE wall mount guarantees a secure data transmission and a continuous connection to the network.

Always charged

The fully wired optional PoE wall mount provides constant power to Joan 6 Pro.

Room occupancy status

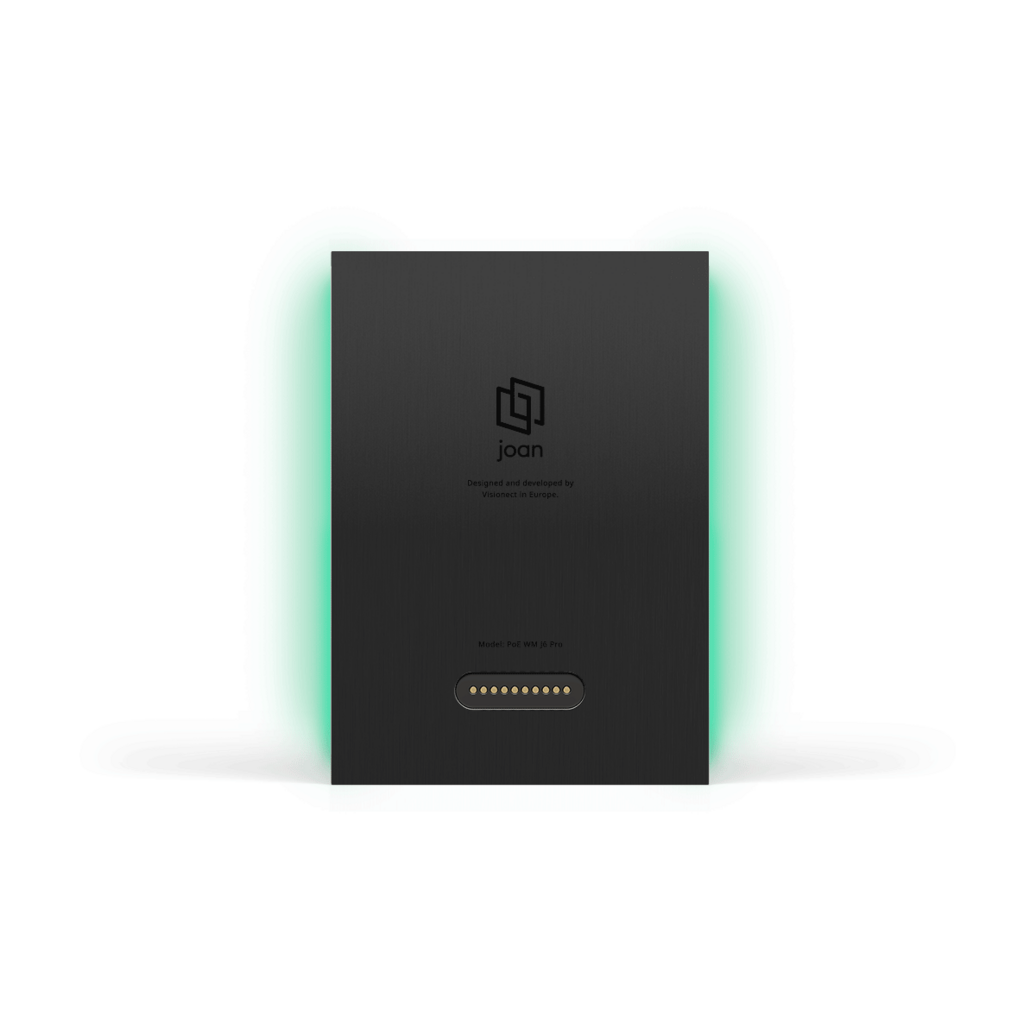

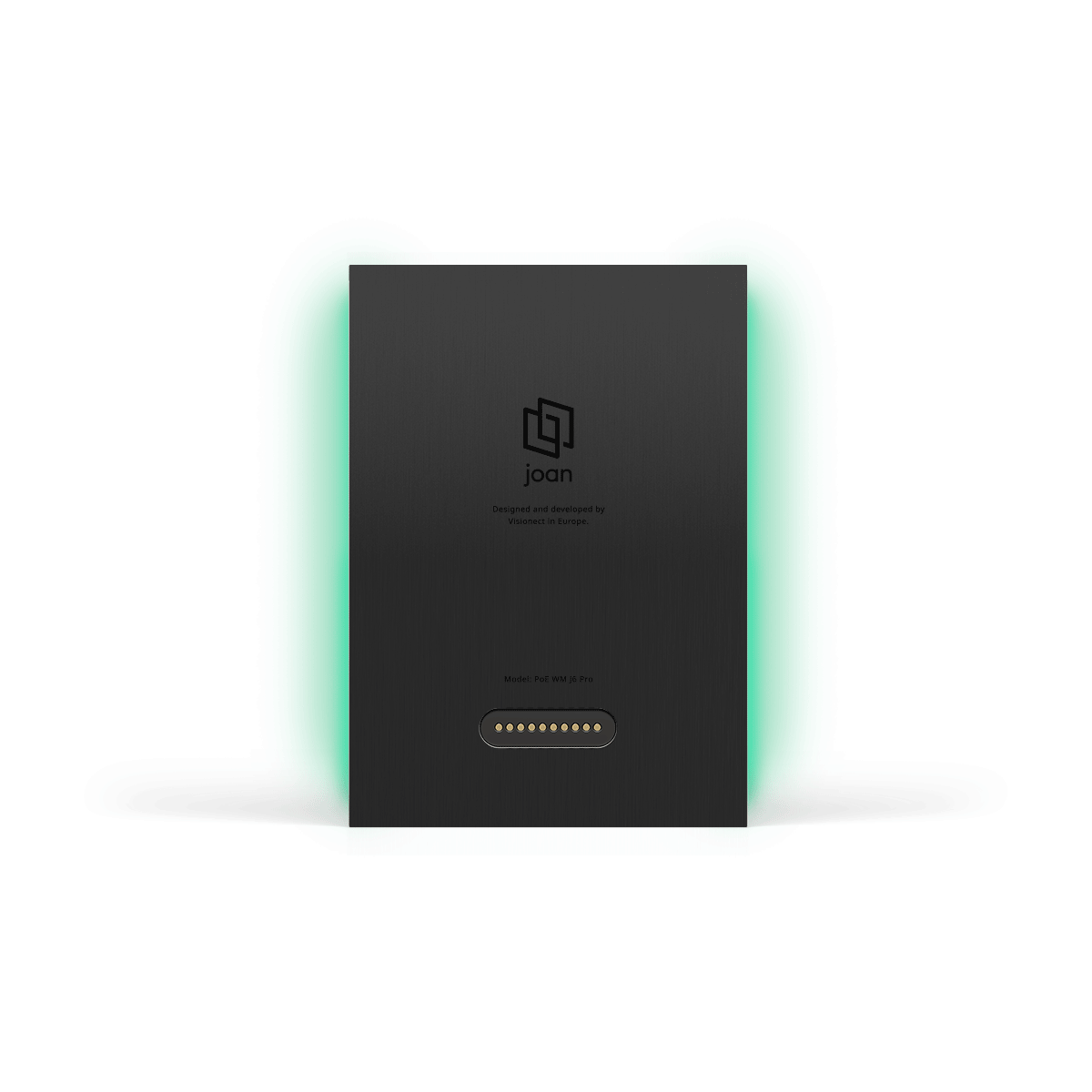

The side of the wall mount is equipped with LED lights, which provide occupancy information – green for free and red for booked.

Learn more about the PoE Wall Mount

From technical specifications to product details. Here’s everything you need to know about PoE Wall Mount created exclusively for Joan 6 Pro.

Dimensions & Weight

  • Height: 130.2 mm (5.13 in)
  • Width: 92 mm (3.62 in)
  • Depth: 14 mm (0.55 in)
  • Weight: 310 g (10.9 oz)

Technical specifications

  • High quality anodized aluminum casing
  • Low power ethernet 10/100 Mbps, IEEE 802.3u compliant: 100BASE-FX, 100BASE-TX, 10BASE-Te
  • PoE (Power over Ethernet), IEEE 802.3at (compatible with various PoE injectors)
  • RGB LED light
  • Output rating of 5 V, 1 A.
  • CAT5(e) or CAT6 cables should be used for connecting the Wall Mount. Additionally, we advise using AWG 26 or 28 UTP cables, because they have a smaller bend radius and enable a more smooth integration.

Environmental conditions

  • Operating and storage temperature range: 32°F to 113°F (0°C to +45°C)

Mounting instructions

  • Remove the front cover of the PoE Wall Mount.
  • Drill holes into the wall and attach the PoE Wall Mount to the wall. The PoE Wall Mount can be mounted at a maximum height of 2 meters.
  • Plug the Ethernet cable into the PoE Wall Mount from the top. The cable can also slide in from the top right or left.
  • Put the front cover of the PoE Wall Mount back on.
  • Attach your Joan 6 Pro to the PoE Wall Mount.
  • Detailed instructions are available here.

In the box

  • 1x POE Wall Mount for Joan 6 Pro.
