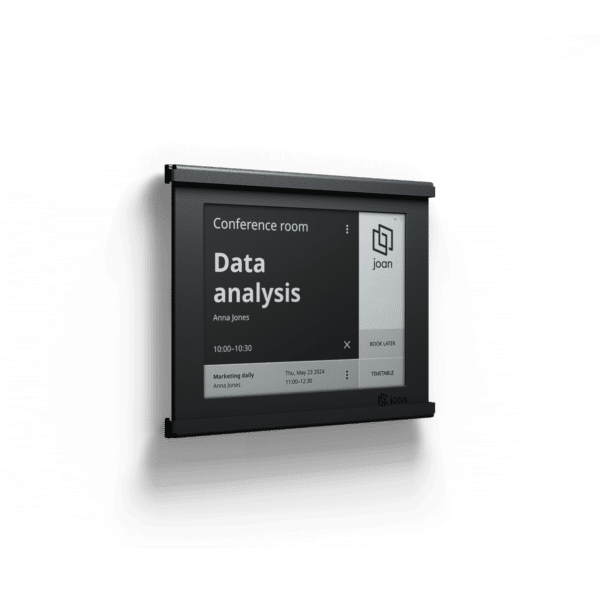

Prevent unauthorized removal without distracting from Joan’s seamless look and feel. Fix Joan into place with the 6-inch Secure Wall Mount, a steel VESA bracket offering an additional, more secure mounting option for the room booking solution.
[](https://getjoan.com/shop/joan-6-re-secure-mount/)
The Secure Wall Mount continues the tradition of effortless Joan installation and can be attached to all surfaces, easily. Ideal for plaster walls or uneven surfaces. It comes with everything you need for the installation on all surfaces.

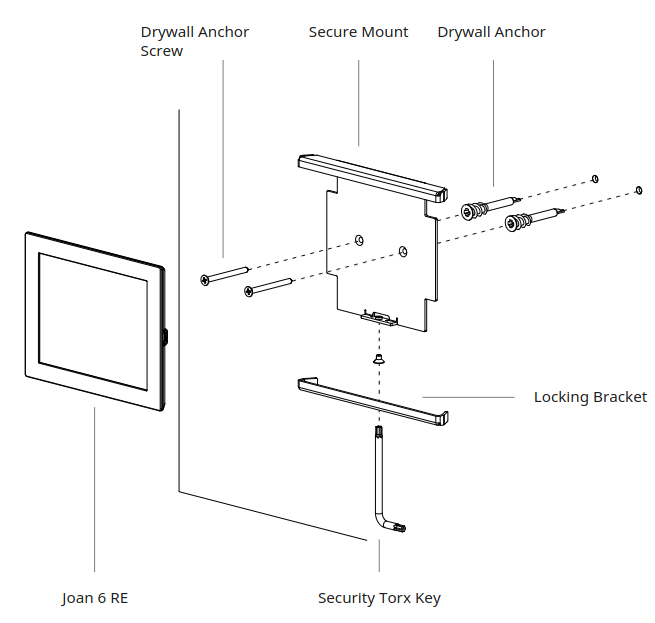

To install the Secure Wall Mount on a hard surface such as drywall or plaster walls, follow these instructions:
- Install Drywall Anchors into the wall.
- Fasten Secure Mount to the wall with the Drywall Anchor Screws.
- Loosen Locking Bracket.
- Insert Joan 6 RE topmost side first.
- Tighten Locking Bracket.

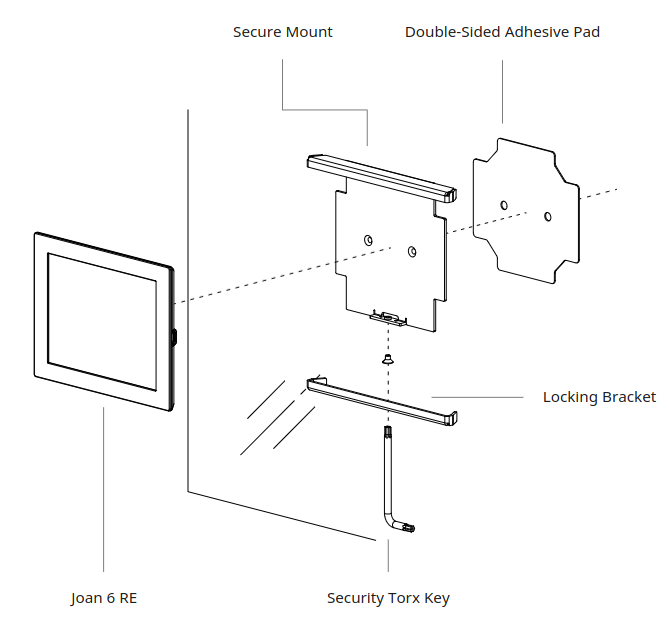

- Clean the glass surface and the rear
of the Secure Mount with Alcohol Pads. - Adhere the Double-Sided Adhesive Pad
onto the rear of the Secure Mount. - Adhere the Secure Mount
to the glass panel. - Wait one hour for the adhesive
to gain holding strength. - Loosen the Locking Bracket.
- Insert Joan 6 RE topmost side first.
- Tighten the Locking Bracket.
- 1x Secure Wall Mount, 6-inch
- 1x locking bracket
- 1x assembly screw

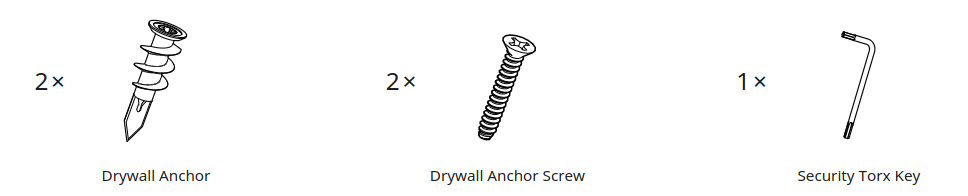

- 2x drywall anchor
- 2x drywall anchor screw
- 1x T10 security torx key

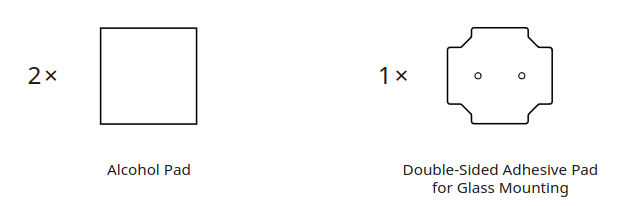

- 2x alcohol pad
- 1x double-sided adhesive pad for glass mounting
Materials
- Custom-built anti-theft VESA bracket
- Laser cut from powder-coated steel
Installation
- Compatible with Joan 6 RE devices
- Seamless installation, with a locking bracket that fixes Joan into place and prevents unauthorized removal.
- Detailed instructions: the installation instructions (PDF).
Dimensions
- 154 × 19 × 130 mm (6.06 × 0.75 × 5.12 in)
Weight
- 544 g (19.19 oz.)
Purchase the Secure Wall Mount for your Joan 6 RE Joan 6 RE Secure Mount in the Joan shop
