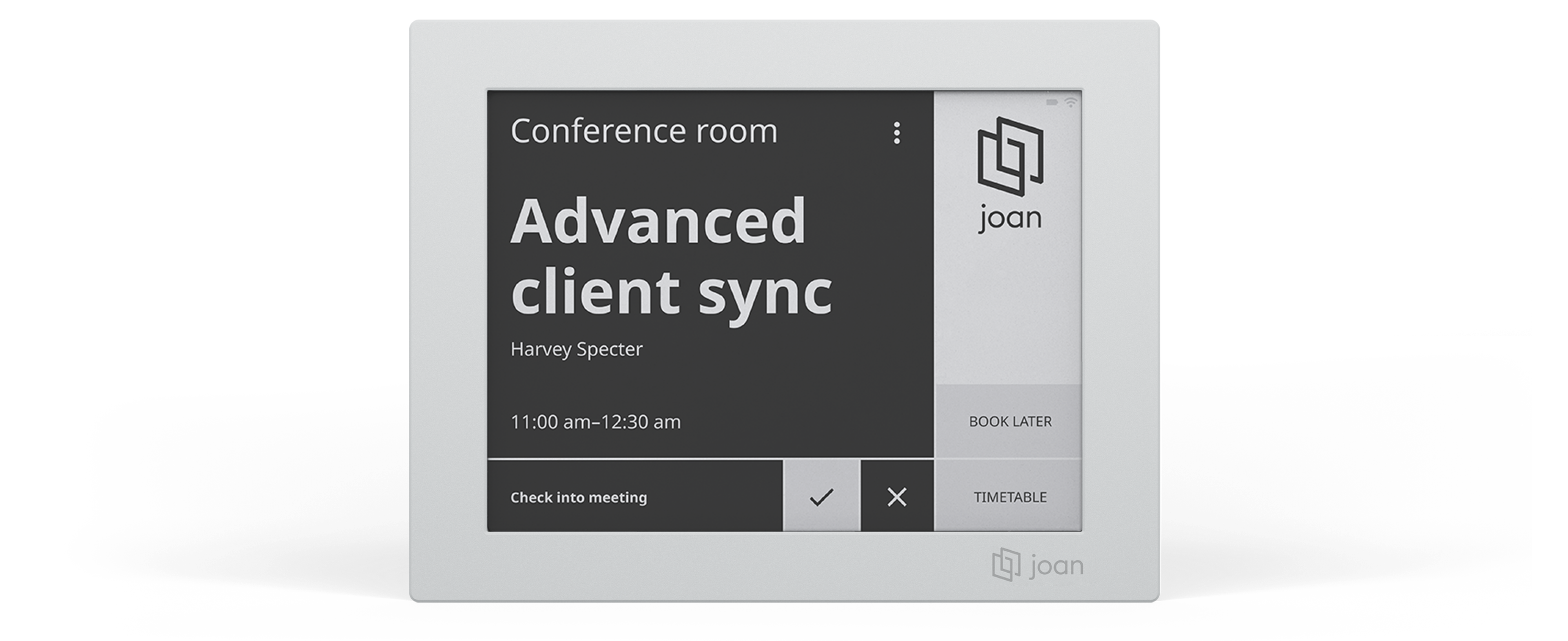

Joan 6 RE is a 6-inch touch E Ink room display (1024 × 758 pixels, front light, landscape view) with dual-band Wi-Fi and Bluetooth 5. The full specifications are below.
Specification | Joan 6 RE |
|---|---|
Screen | 6-inch (4:3 diagonal) interactive touch E Ink® electronic paper screen |
Touch | Full capacitive touch screen |
Orientation | Landscape |
Visibility | High visibility and contrast (anti-glare hard-coated front surface), 180° viewing angle |
Resolution | 1024 × 758 pixels |
Front light | Yes |
Active area (W × H) | 4.82 × 3.57 in (122.368 × 90.581 mm) |
Pixel pitch (W × H) | 0.005 × 0.005 in (0.1195 × 0.1195 mm), equivalent to 212 PPI |
Pixel configuration | Square |
Grayscale | 16 levels |
Refresh rate | 750 ms full (4-bit) / 100 ms partial (1-bit) |
Specification | Joan 6 RE |
|---|---|
Wi-Fi | 2.4/5 GHz (IEEE 802.11 b/g/n), WPA3-PSK, WPA2-PSK, WPA2-EAP (EAP-TLS up to TLS 1.0, used to join the local Wi-Fi network) |
Bluetooth | 2.4 GHz Bluetooth 5 |
Transmit power | Up to +18 dBm (2.4 GHz), +13.5 dBm (5 GHz) |
Operating frequency range | 2412–2484 MHz, 4.9–5.975 GHz |
Specification | Joan 6 RE |
|---|---|
Power use | Patented ultra-low energy architecture, only 1% of the power used by LCD |
Battery | Rechargeable lithium-polymer, 5,400 mAh, 98 g (3.46 oz) |
Battery life | Up to 3 months on a single charge |
Charging | 5–7 hours with a USB-C charger (output 5 V, 1 A); USB-C cable included |
Operation | Cordless |
Note
The 3-month battery life is reached with good Wi-Fi signal strength and a 5 × 10-hour weekly schedule. Read more about office hours in How to change the office hours for Joan devices.Note
CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.Calendar | Authentication |
|---|---|
Google Workspace (formerly G Suite; Google Calendar) | OAuth2 |
Microsoft 365 (Exchange Online) | OAuth2 |
Microsoft Exchange (Outlook) | Basic authentication; NTLM |
iCalendar (.ics) | — |
Specification | Joan 6 RE |
|---|---|
Encryption | TLS 1.3 encrypts application and calendar data between the device and the hosting server |
Specification | Joan 6 RE |
|---|---|
Device (W × H × D) | 6.11 × 4.75 × 0.49 in (155.2 × 120.4 × 12.4 mm) |
Weight | 266 g (9.4 oz) |
Specification | Joan 6 RE |
|---|---|
Material | High-quality plastic housing |
Color | Black, Gray |
Specification | Joan 6 RE |
|---|---|
Included mount | Magnetic Mount for Joan 6 RE: self-adhesive, attaches to any surface without tools; lets you configure the device after charging (no need to match the device with the meeting room) |
Maximum mounting height | 2 m |
Instructions |
Specification | Joan 6 RE |
|---|---|
Operating and storage temperature | 32°F to 113°F (0°C to +45°C) |
- 6-inch Joan 6 RE device
- USB-C cable
- Onboarding information
- 1 Magnetic Mount for Joan 6 RE
- Access to the MyJoan Portal
Specification | Joan 6 RE |
|---|---|
Warranty | One-year Limited Warranty |
Also included | Software, unlimited updates and upgrades, and free lifetime support |
